Ceramic Fiber Boards

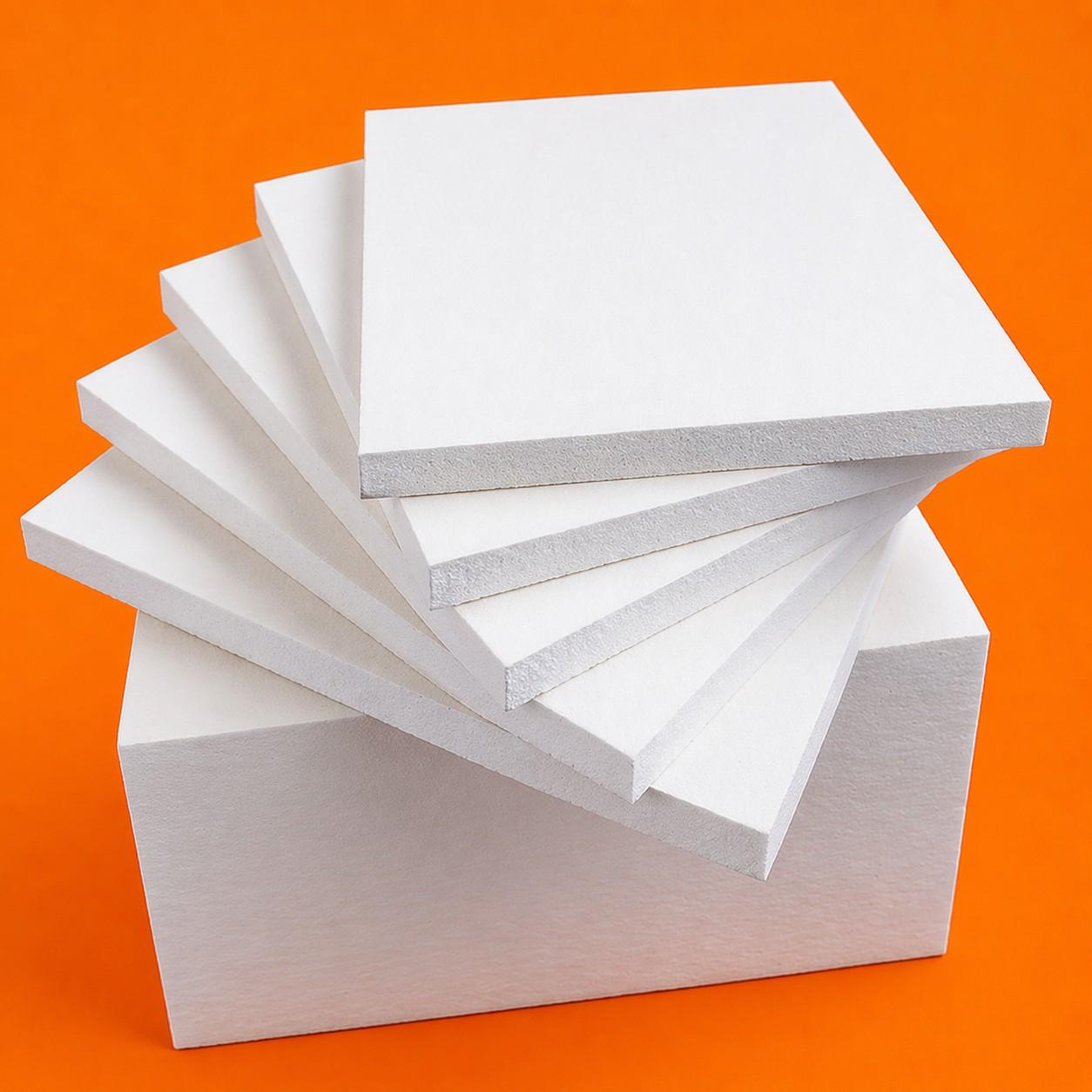

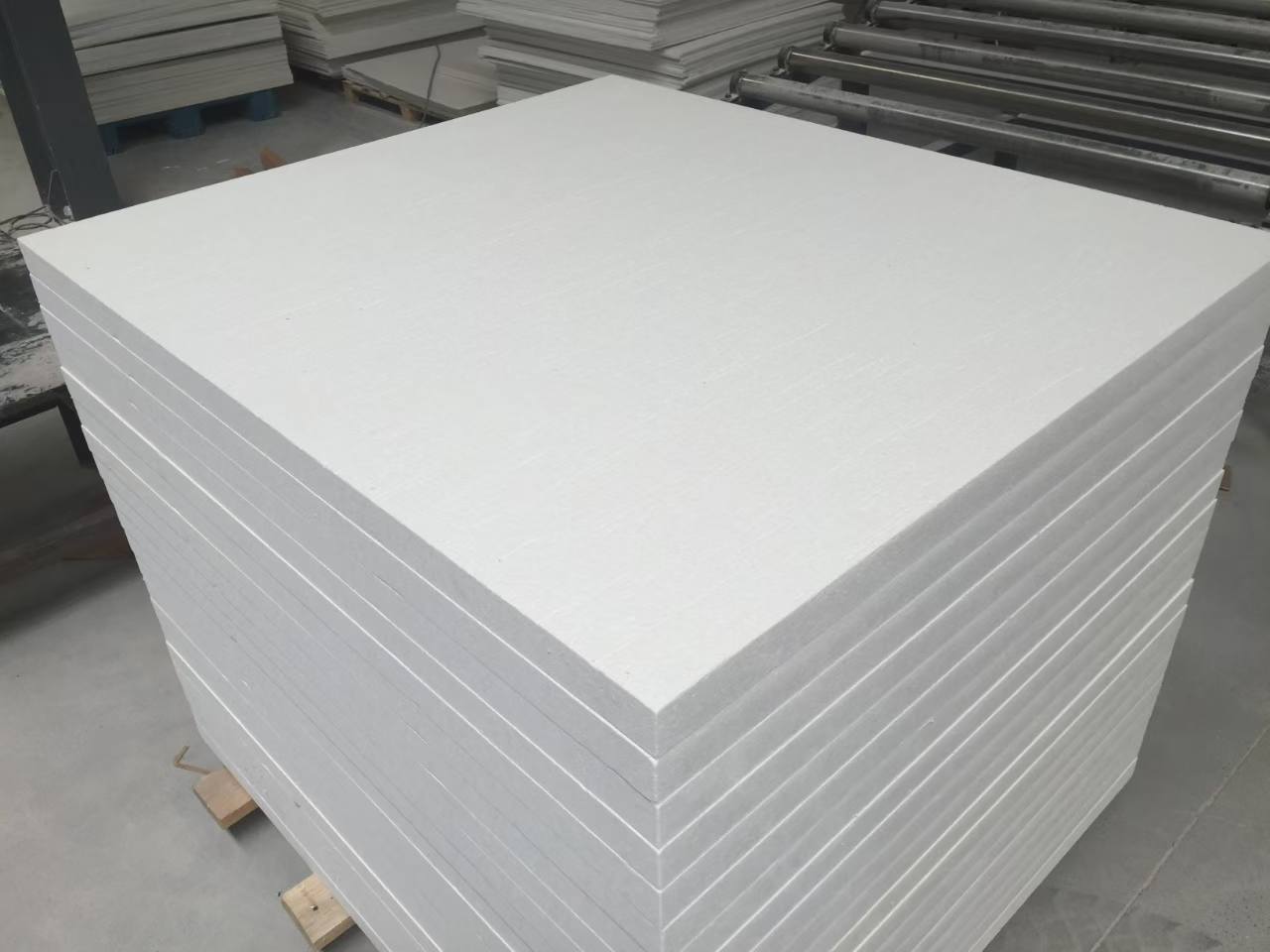

Oniir Marketing’s Ceramic Fiber Boards are top-class and rigid insulation panels meant for use in highly challenging temperature situations. These boards have been produced using top-notch alumina silicate ceramic fibers and vacuum forming technology, thus giving them good thermal stability, minimum heat loss, and strong physical properties. They have been designed in such a way that they are light but very strong and suitable for use in industries, including industrial furnaces, kilns, and boilers, among others. Ceramic fiber boards have been known to be characterized by their ability to withstand very high temperatures as well as being thermally shock resistant.
Technical Specifications
Parameter | Details |
Material | Alumina-Silicate Ceramic Fiber |
Maximum Temperature | 1050°C to 1430°C (up to 1700°C in special grades) |
Density | 220 – 400 kg/m³ (custom options available) |
Thermal Conductivity | 0.08 – 0.25 W/m·K |
Standard Sizes | 600×400 mm, 1200×1000 mm |
Thickness Range | 10 mm to 100 mm |
Color | White |
Compressive Strength | ≥ 2.5 MPa |
Linear Shrinkage | ≤ 3.5% at high temperature |
Chemical Composition | Al₂O₃ + SiO₂ ≥ 95% |
Main Characteristics
- Heat Temperature Resistance – Operates effectively at temperatures up to 1430°C
- Low Thermal Conduction – Minimizes heat loss and improves energy efficiency
- Resistance to Thermal Shock – Resistant to quick changes in temperature
- Strong Mechanical Properties – Strong and durable under industrial conditions
- Easy to Cut & Install – Can be shaped easily during machining
- Lightweight Structure – Decreases the weight burden
- Low Heat Capacity – Quick response to heating and cooling
- Abrasion and Corrosion
- Resistance – Able to withstand harsh conditions
- Non-Asbestos and Non-Toxic – Eco-friendly thermal insulation material
Applications
There is a wide range of industrial applications for Ceramic Fiber Boards, such as:
Industrial Furnaces and Kilns – Insulation and back-up lining
Boilers and Heaters – Insulation and thermal containment
Petrochemical Facilities – Reactor, ducting, and pipeline insulation
Power Plant Industry – Turbine insulation and thermal containment system
Aerospace Industry – Thermal barrier systems and thermal insulations
Fire Protection Systems – Fire-resistant walls and partitions
Expansion joints and gaskets – High temperature joint and seal applications
Glass and Ceramics Industries – Kiln furniture and mold insulations
The above-mentioned applications demonstrate the variety of applications of ceramic fiber boards in high-temperature industrial conditions.
